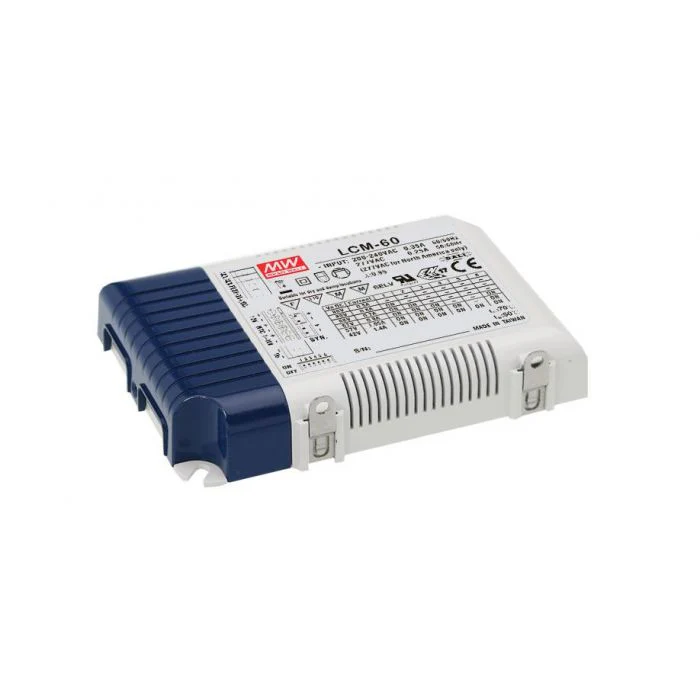

LCM-60 - Mean Well LCM-60 Selectable Current LED Driver 60W 500~1400mA
Built-in 0~10Vdc or PWM signal dimming function
Output current level selectable by DIP S.W.
Built-in active PFC function
Protections: Short circuit / Over voltage / Over temperature
Other features:
180~295VAC input only
Cooling by free air convection
Temperature compensation function by external NTC
No load power consumption <1.2W@AC always on
Fully isolated plastic case
Class power unit, no FG
Built-in 12V/50mA auxiliary output
Suitable for LED lighting applications
Power supplies synchronization function up to 10 units
3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 0~10Vdc & PWM signal Dimensions 123.5x 81.5x 23 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547 light industry level (surge 2KV), criteria A Input Voltage 180~295VAC 254~417VDC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13,EN62384 independent approved Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet LCM-60-spec_2.pdf
More Information Manufacturer Mean Well Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 0~10Vdc & PWM signal Dimensions 123.5x 81.5x 23 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547 light industry level (surge 2KV), criteria A Input Voltage 180~295VAC 254~417VDC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13,EN62384 independent approved Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet LCM-60-spec_2.pdf
$70.29
LCM-60 - Mean Well LCM-60 Selectable Current LED Driver 60W 500~1400mA—
$70.29
LCM-60 - Mean Well LCM-60 Selectable Current LED Driver 60W 500~1400mA
Built-in 0~10Vdc or PWM signal dimming function
Output current level selectable by DIP S.W.
Built-in active PFC function
Protections: Short circuit / Over voltage / Over temperature
Other features:
180~295VAC input only
Cooling by free air convection
Temperature compensation function by external NTC
No load power consumption <1.2W@AC always on
Fully isolated plastic case
Class power unit, no FG
Built-in 12V/50mA auxiliary output
Suitable for LED lighting applications
Power supplies synchronization function up to 10 units
3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 0~10Vdc & PWM signal Dimensions 123.5x 81.5x 23 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547 light industry level (surge 2KV), criteria A Input Voltage 180~295VAC 254~417VDC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13,EN62384 independent approved Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet LCM-60-spec_2.pdf
More Information Manufacturer Mean Well Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 0~10Vdc & PWM signal Dimensions 123.5x 81.5x 23 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547 light industry level (surge 2KV), criteria A Input Voltage 180~295VAC 254~417VDC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13,EN62384 independent approved Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet LCM-60-spec_2.pdf
