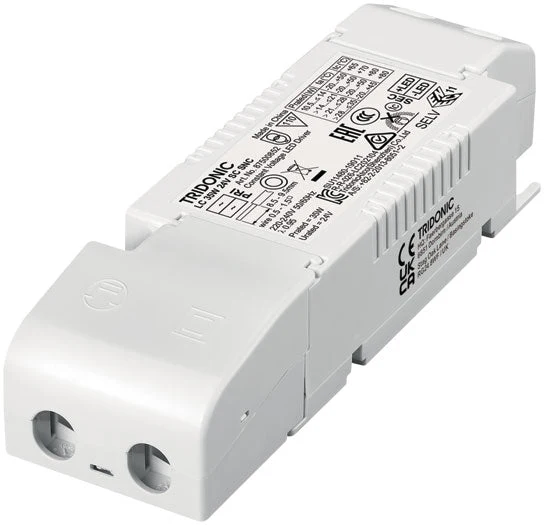

LC 35W 24V SC SNC 87500852

LC 35W 24V SC SNC 87500852

Product description

  • Constant voltage LED driver
  • Output voltage 24 V
  • Max. output power 35 W
  • Dimmable via external PWM LED dimmers attached on output side
  • The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
  • Nominal lifetime up to 50,000 h
  • 5 years guarantee (conditions at www.tridonic.com)


Article information
Data sheet

Common Data

Approval marks:


Rated supply voltage 220 – 240 V
AC voltage range 198 – 264 V
Mains frequency 50 / 60 Hz
Overvoltage protection 320 V AC, 1 h
Typ. rated current (at 230 V, 50 Hz, full load)  176 mA
Typ. input current in no-load operation 25 mA
In-rush current (peak / duration) 30 A / 180 µs
Max. input power 40 W
Typ. input power in no-load operation 1 W
Typ. efficiency (at 230 V, 50 Hz, full load) 86.5 %
λ (at 230 V, 50 Hz, full load)  0.95
THD (at 230 V, 50 Hz, full load)  < 10 %
Starting time (at 230 V, 50 Hz, full load)  < 0.5 s
Turn off time (at 230 V, 50 Hz, full load) < 0.5 s
Hold on time at power failure (output) 0 s
Output voltage tolerance ± 1 V
Output LF voltage ripple (< 120 Hz) ± 1.5 %
Max. output voltage (U-OUT) 25 V
Mains surge capability (between L - N) 1 kV
Mains surge capability (between L/N - PE) 2 kV
Burst capability 1 kV
Type of protection IP20
Length 142 mm
Width 43 mm
Height 29.8 mm
Lifetime up to 50000 h
Guarantee 5 years
$42.39
