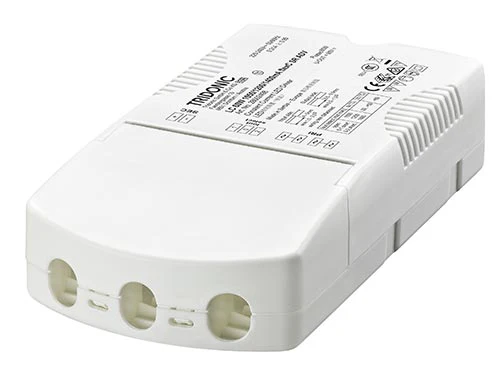

Driver LC 60W 1050/1200/1400mA flexC SR ADV - DISCONTINUED
Driver LC 60W 1050/1200/1400mA flexC SR ADV
advanced series
Product description
- Independent fixed output LED driver
- For luminaires of protection class I and protection class II
- For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current between 1,050, 1,200 and 1,400 mA
- Max. output power 60 W
- Up to 90.5 % efficiency
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
Interfaces
- Input terminals: 0° screw terminals
- Output terminals: 45° push terminals
Functions
- Overload protection
- Short-circuit protection
- No-load protection
- Overtemperature protection
- Burst protection voltage 1 kV
- Burst protection voltage 1 kV (L to N)
- Surge protection voltage 2 kV (L/N to earth)
Typical applications
- For spot light and downlight in retail and hospitality applications
- For panel light and area light in office and education application
Data sheet
| Ordering data | ||||
|---|---|---|---|---|
| Type | Article number | Packaging, carton | Packaging, pallet | Weight per pc. |
| LC 60W 1050/1200/1400mA flexC SR ADV | 28002498 | 20 pc(s). | 1,120 pc(s). | 0.202 kg |
$40.52
Original: $115.78
-65%Driver LC 60W 1050/1200/1400mA flexC SR ADV - DISCONTINUED—
$115.78
$40.52Driver LC 60W 1050/1200/1400mA flexC SR ADV - DISCONTINUED
Driver LC 60W 1050/1200/1400mA flexC SR ADV
advanced series
Product description
- Independent fixed output LED driver
- For luminaires of protection class I and protection class II
- For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current between 1,050, 1,200 and 1,400 mA
- Max. output power 60 W
- Up to 90.5 % efficiency
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
Interfaces
- Input terminals: 0° screw terminals
- Output terminals: 45° push terminals
Functions
- Overload protection
- Short-circuit protection
- No-load protection
- Overtemperature protection
- Burst protection voltage 1 kV
- Burst protection voltage 1 kV (L to N)
- Surge protection voltage 2 kV (L/N to earth)
Typical applications
- For spot light and downlight in retail and hospitality applications
- For panel light and area light in office and education application
Data sheet
| Ordering data | ||||
|---|---|---|---|---|
| Type | Article number | Packaging, carton | Packaging, pallet | Weight per pc. |
| LC 60W 1050/1200/1400mA flexC SR ADV | 28002498 | 20 pc(s). | 1,120 pc(s). | 0.202 kg |
